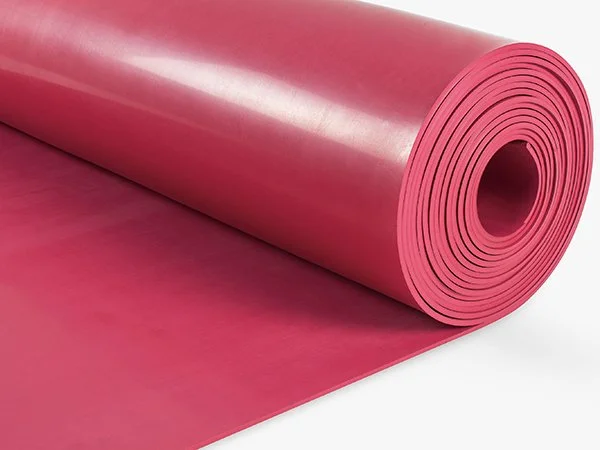

Industrial Gaskets manufactures and stocks Chutex 40 (Pink) gaskets and sheet.
Industrial Gaskets Chutex 40 rubber is a pink, premium grade, soft, flexible and highly elastic Duro 40, wear resistant rubber material. It has excellent resistance to wet and dry fine particle sliding abrasion. This rubber will display resistance to some mild chemicals, including acids and alkalis used in mineral processing.
The properties of Industrial Gaskets Chutex rubber include mechanical strength and cut and tear resistance. This makes it suitable for wear protection and sealing applications which require the rubber to be both flexible and compressible.
Chutex 40 rubber is mainly used in abrasion applications in the mining and mineral processing industries, but can be used for any general sealing applications.
| Part Number | Size | Weight (Per L/M) |
| CHX1.5 | 1.5mm x 1200mm (10 L/M Rolls) | 1.9 kgs |
| CHX3.0 | 3.0mm x 1200mm (10 L/M Rolls) | 3.9 kgs |
| CHX4.5 | 4.5mm x 1200mm (10 L/M Rolls) | 5.8 kgs |
| CHX6.0 | 6.0mm x 1200mm (10 L/M Rolls) | 7.7 kgs |
| CHX9.0/1200 | 9.0mm x 1200mm (10 L/M Rolls) | 11.5 kgs |
| CHX9.0/1500 | 9.0mm x 1500mm (10 L/M Rolls) | 14.4 kgs |
| CHX12.0/1200 | 12.0mm x 1200mm (10 L/M Rolls) | 12.8 kgs |
| CHX12.0/1500 | 12.0mm x 1500mm (10 L/M Rolls) | 16 kgs |
| CHX16.0/1200 | 16.0mm x 1200mm (10 L/M Rolls) | 17.1 kgs |
| CHX16.0/1500 | 16.0mm x 1500mm (10 L/M Rolls) | 21.3 kgs |
| CHX19.0/1200 | 19.0mm x 1200mm (10 L/M Rolls) | 20.3 kgs |
| CHX19.0/1500 | 19.0mm x 1500mm (10 L/M Rolls) | 25.3 kgs |
| CHX25.0/1200 | 25mm x 1200mm (10 L/M Rolls) | 26.8 kgs |
| CHX25.0/1500 | 25mm x 1500mm (10 L/M Rolls) | 33.4 kgs |
This material is available in cut standard and non standard gaskets, components, rolls, strips, washers, pads, isolators or metre lengths.
Some sizes available for online purchase.
Refer datasheet for further product information or contact our Technical Sales team.
| Size | Price | |
|---|---|---|
Chutex 40 (Pink) Rubber1.5mm thick 1200mm x 1000mm | $74.60 | |
Chutex 40 (Pink) Rubber 3.0mm thick 1200mm x 1000mm | $125.00 | |
Chutex 40 (Pink) Rubber 4.5mm thick 1200mm x 1000mm | $186.60 | |
Chutex 40 (Pink) Rubber 6.0mm thick 1200mm x 1000mm | $248.40 | |
Chutex 40 (Pink) Rubber 9.0mm thick 1200mm x 1000mm | - | |
Chutex 40 (Pink) Rubber 9.0mm thick 1500mm x 1000mm | - | |
Chutex 40 (Pink) Rubber 12.0mm thick 1200mm x 1000mm | $365.80 | |
Chutex 40 (Pink) Rubber 12.0mm thick 1500mm x 1000mm | $457.20 | |
Chutex 40 (Pink) Rubber 16.0mm thick 1200mm x 1000mm | - | |
Chutex 40 (Pink) Rubber 16.0mm thick 1500mm x 1000mm | $604.20 | |
Chutex 40 (Pink) Rubber 19.0mm thick 1200mm x 1000mm | $706.20 | |
Chutex 40 (Pink) Rubber 25.0mm thick 1200mm x 1000mm | - |
