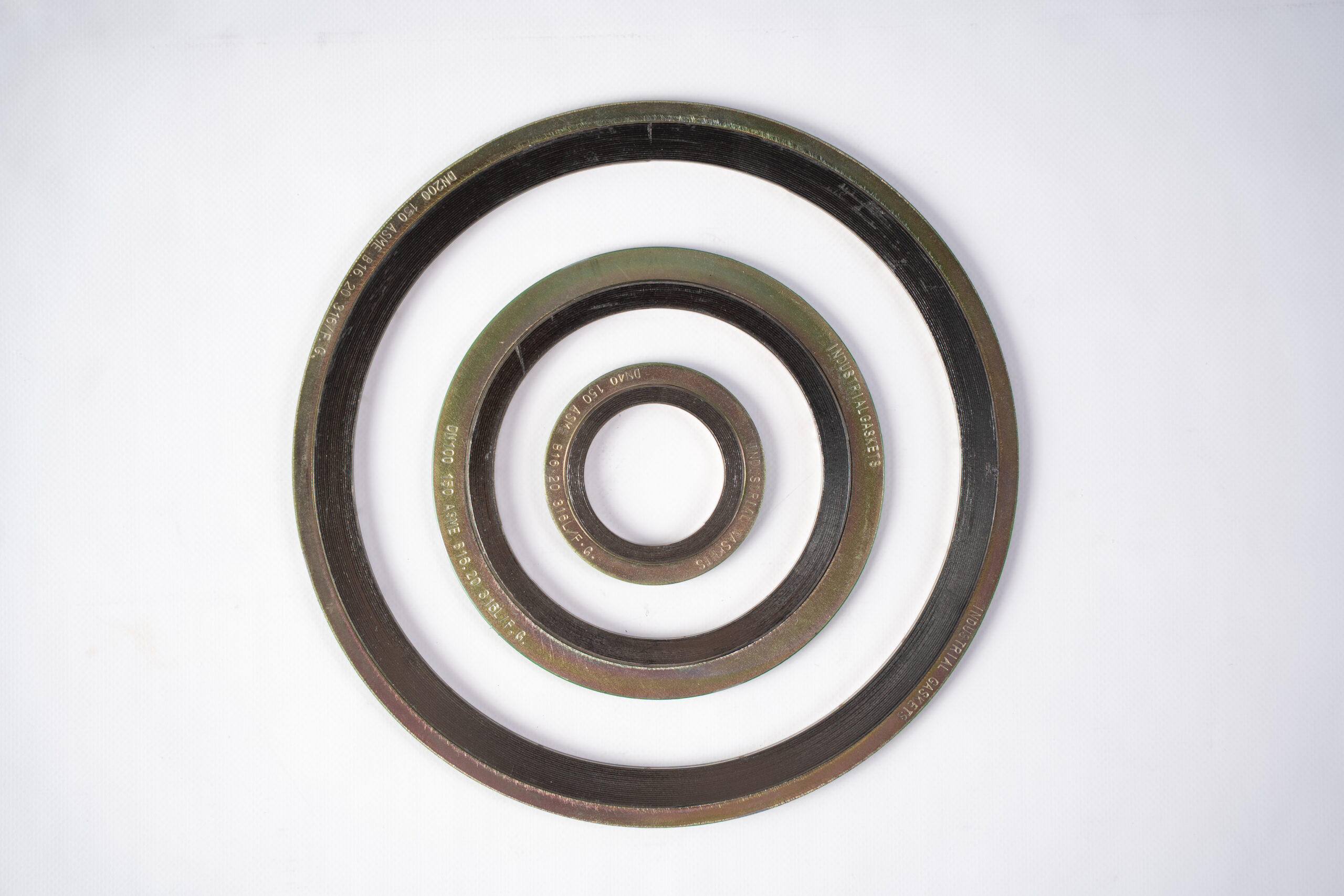

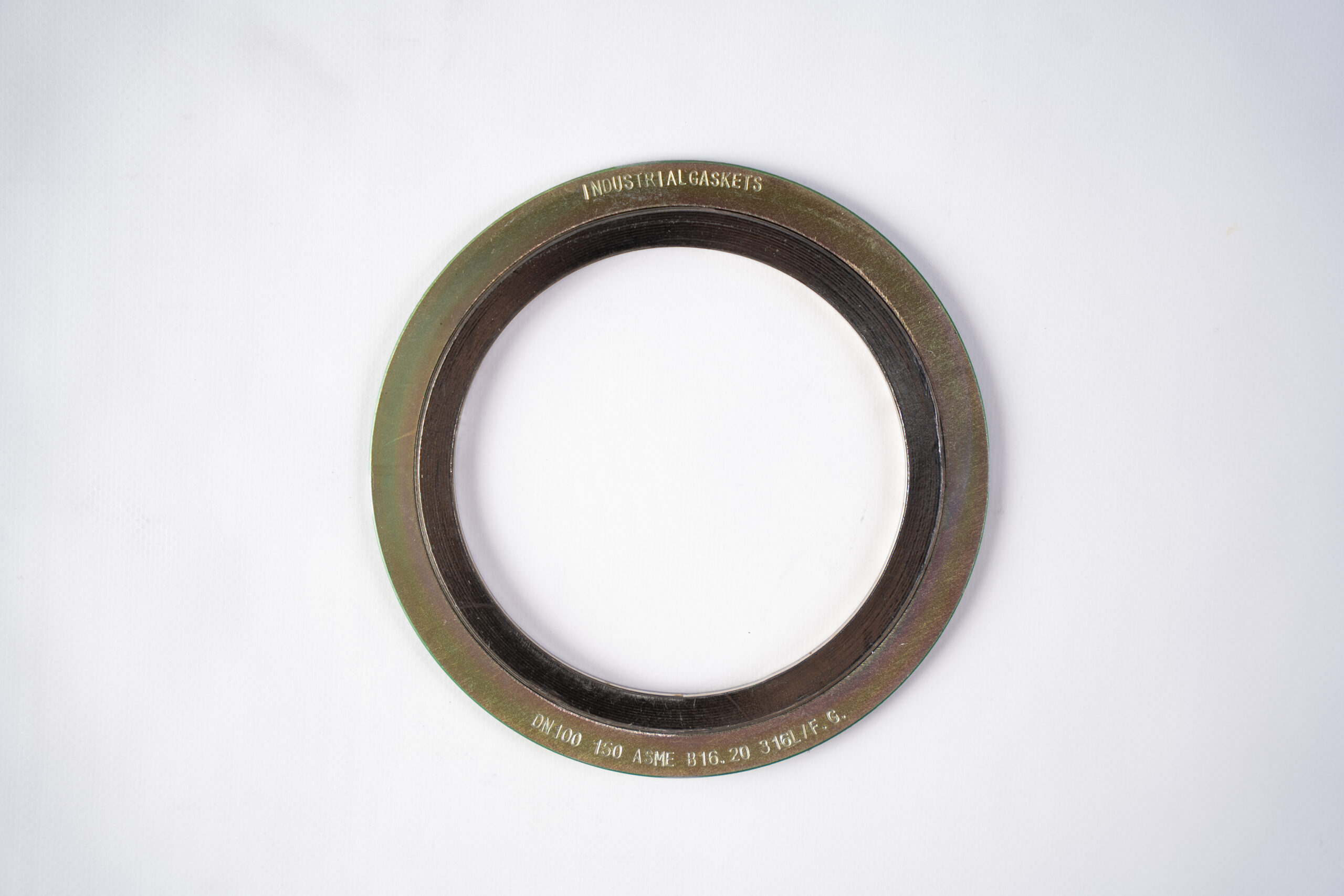

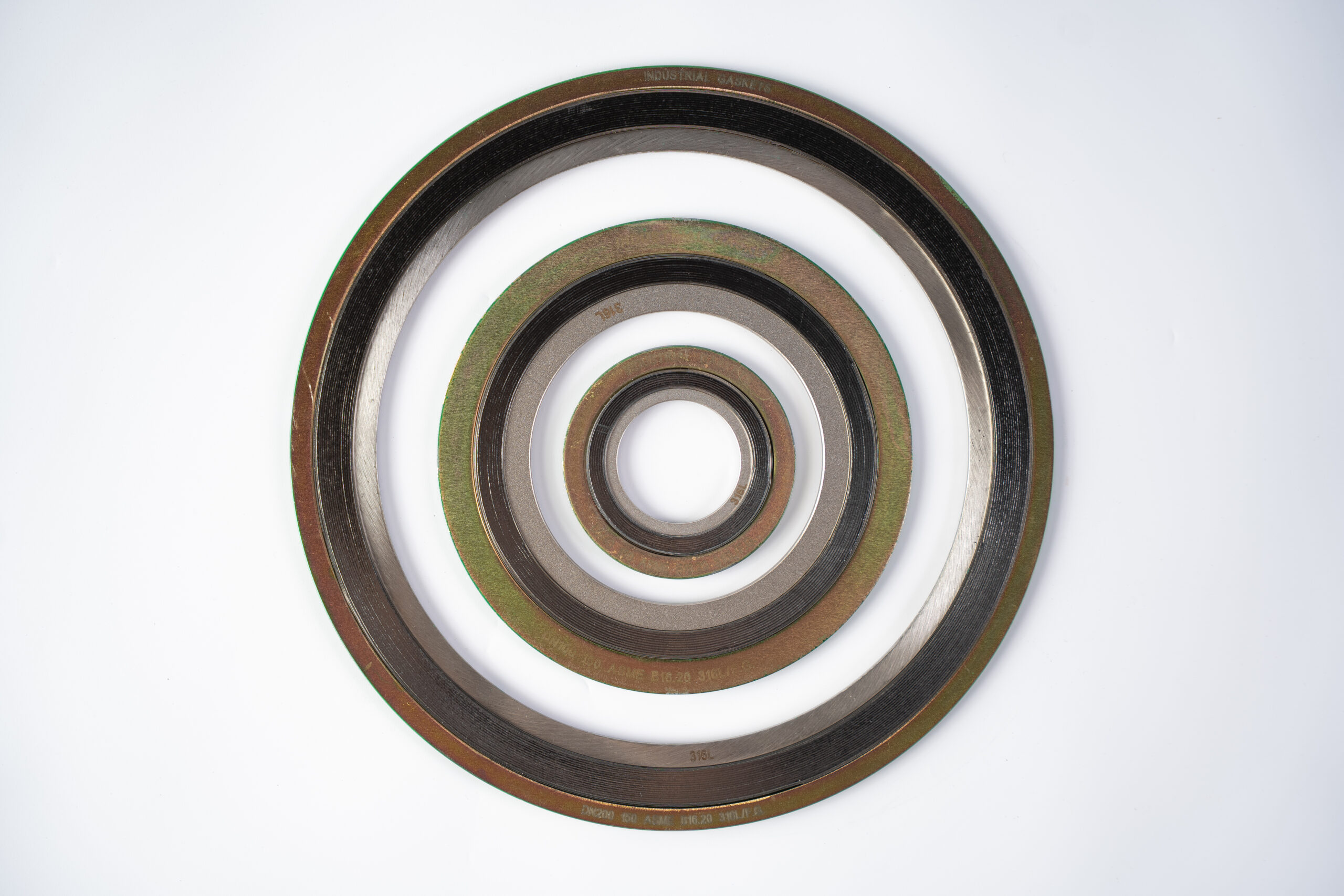

The Spiral Wound – Style CG is a type of gasket for pipes and flanges that has a metal spiral-wound sealing element and a solid outer metal ring, also known as a centering or guide ring. The outer ring helps to position the gasket accurately on the flange, provides radial strength to prevent gasket blowouts, and limits compression to avoid damaging the sealing element.Â
The CG style is suitable for general-purpose applications, including both flat face and raised face flanges flat face and raised face flanges, under mild to moderate service conditions. Â
Refer datasheet for further product information or contact our Technical Sales team.
| SizeFlange Rating/Standard | Price | |
|---|---|---|
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 100mm | $7.88 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 125mm | $9.49 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 150mm | $12.50 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 15mm | $1.27 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 200mm | $16.24 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 20mm | $1.60 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 250mm | $21.11 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 25mm | $2.00 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 300mm | $28.67 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 32mm | $2.14 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 350mm | $31.40 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 400mm | $40.56 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 40mm | $2.81 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 450mm | $54.12 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 500mm | $65.21 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 50mm | $3.54 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 600mm | $82.25 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 65mm | $4.14 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 80mm | $5.55 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300 100mm | $8.09 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300 125mm | $9.69 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300 150mm | $13.30 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300 200mm | $18.44 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300 250mm | $22.92 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300 300mm | $29.80 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300 350mm | $33.81 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300 400mm | $42.46 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300 450mm | $57.73 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300 500mm | $68.56 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300/#600 15mm | $1.34 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300/#600 20mm | $1.67 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300/#600 25mm | $2.00 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300/#600 32mm | $2.27 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300/#600 40mm | $2.94 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300/#600 50mm | $3.68 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300/#600 65mm | $4.34 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300/#600 80mm | $5.68 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300 600mm | $93.48 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #600 100mm | $9.62 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #600 125mm | $12.36 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #600 150mm | $16.04 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #600 200mm | $21.45 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #600 250mm | $27.60 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #600 300mm | $36.62 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #600 350mm | $40.56 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #600 400mm | $51.72 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #600 450mm | $68.62 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #600 500mm | $75.97 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #600 600mm | $98.02 |
