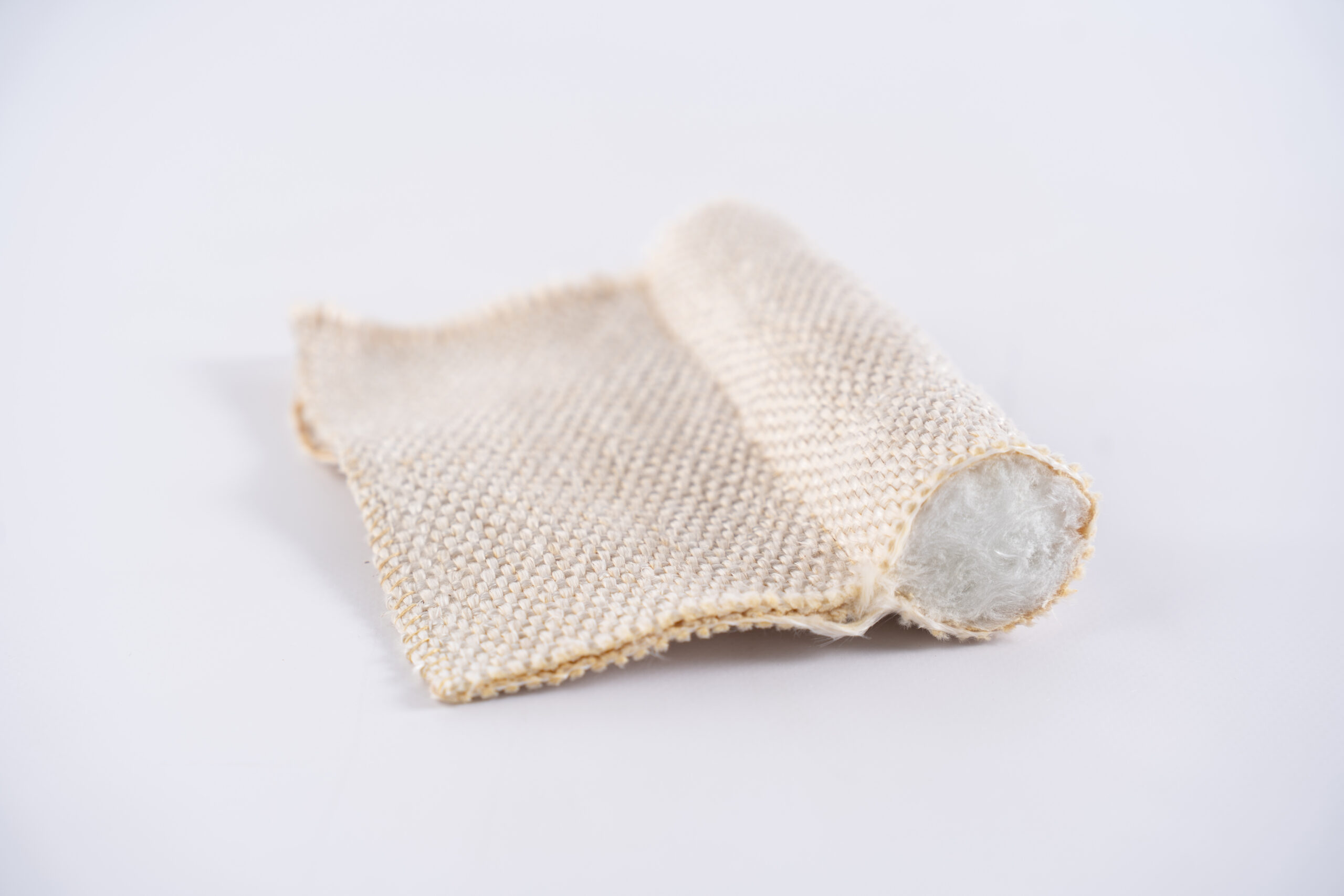

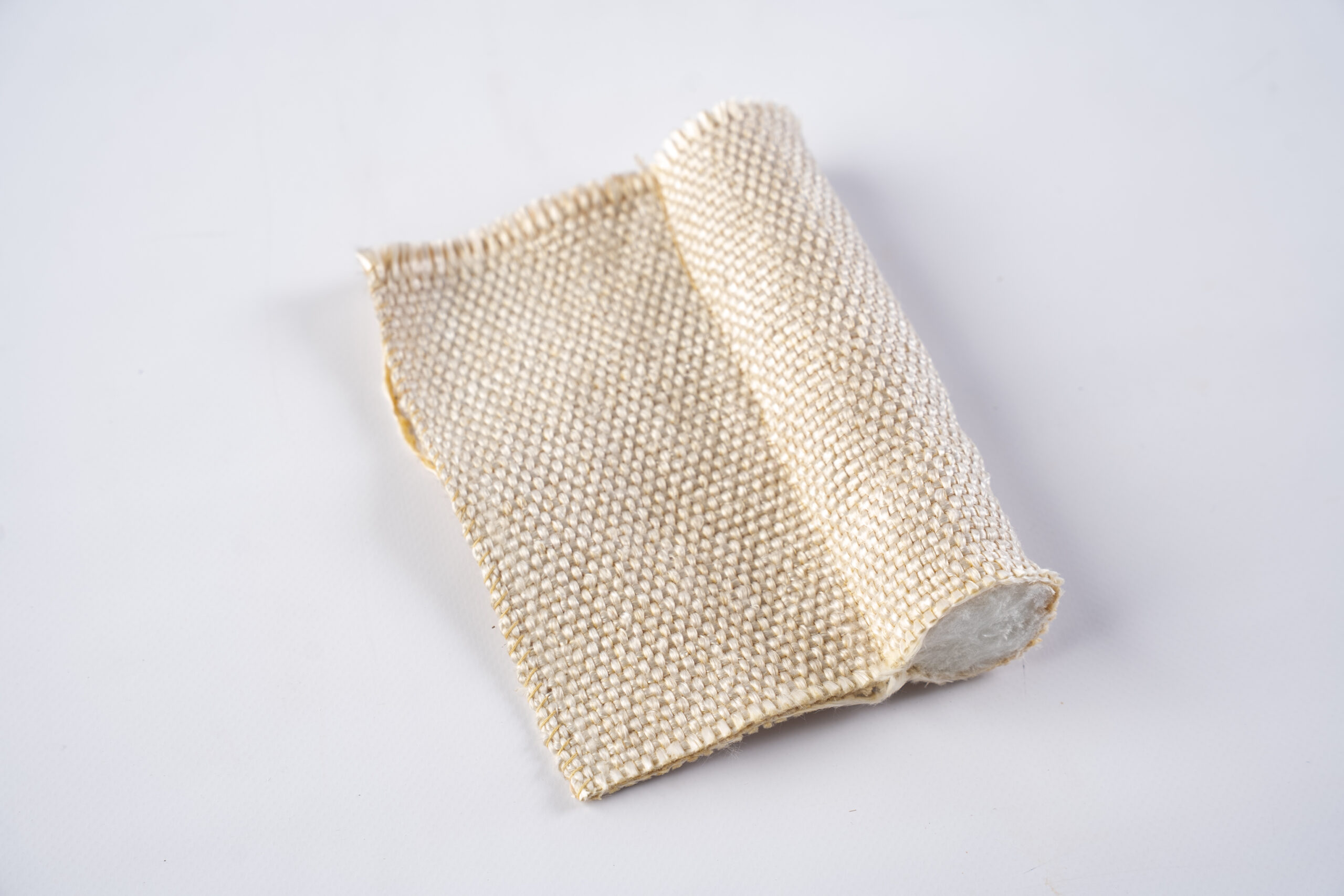

Fibreglass Tadpole Tape is manufactured from formed fiberglass fabric and formed over either a dense-knitted fiberglass rope core or an Inconel mesh core, these tadpole tapes are a good gasket material for sealing of flanges or where low bolt force is applied.
The core portion in the bulb is a twisted fibreglass rope. A side profile of the woven fibreglass cloth tape represents the shape of a Tadpole, hence the name.
Service temperature is generally up to 540°C.
Availability
Thickness: 1.6mm to 6.0mm
Overall Width: 20mm to 80mm
Bulb Diameter: 10mm to 30mm
A- Please give Diameter of Bulb
B- Length of Tail
C- Thickness of Tail
Overall Length of the Tadpole Tape Seal
Advise if Bulb is to be Hard or Soft
Refer datasheet for further product information or contact our Technical Sales team for higher temperature applications.
