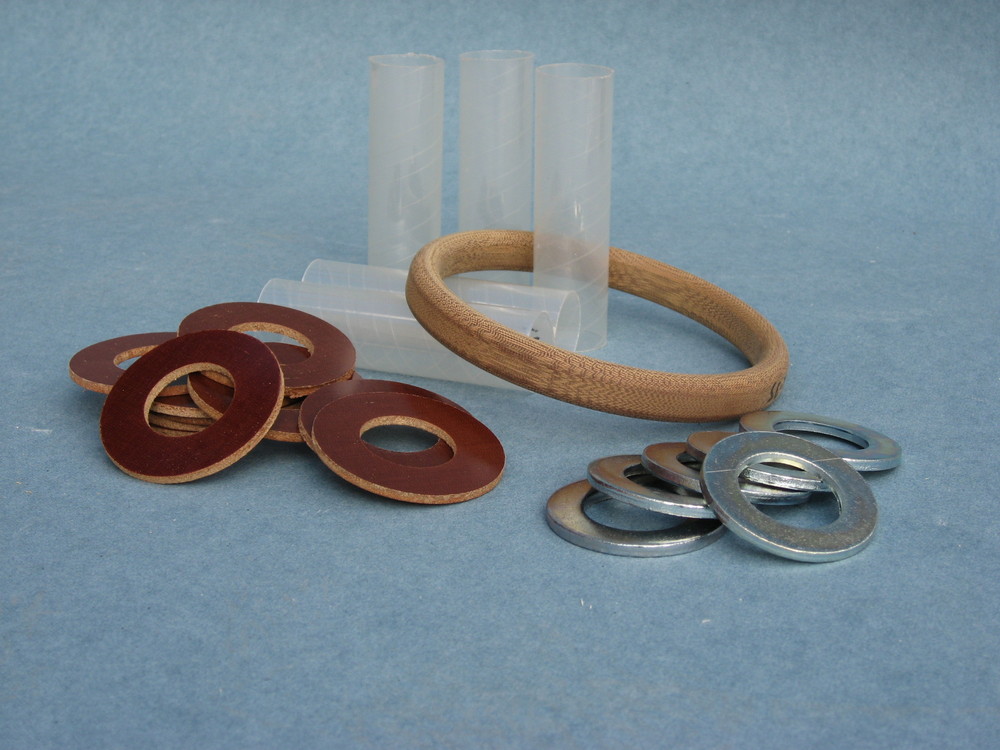

Industrial Gaskets – Type D Flange Insulation Kits are specially made for RTJ flanges to be positioned in the ring groove of the flange.
We can supply an extensive range of insulating gaskets, bolt insulation and complete gasket kits to suit any operational specifications.
Flange Insulation Gaskets for a type D are available Phenolic, G10 Epoxy Trojan, Integra© range, GPT Linebacker © Fire Safe. Each kit can be supplied with washers, sleeves in a wide variety of materials depending on your application including Minlon, Mylar, G11 Epoxy and Nomex.
Industrial Gaskets Flange Insulation products are designed to combat the effects of corrosion often found in flanged pipe systems. Galvanic corrosion between dissimilar metal flanges, flange insulation associated with cathodic protection of underground piping are other examples where Flange Insulation can be put to effective use.
Consists of an RTJ Phenolic gasket or Integra II SSA gasket (supplied with supporting bolts insulation materials). Required when ring groove flanges are in use.
Consists of a Full Face gasket (supplied with supporting bolts insulation materials). The most commonly specified kit style is the Type E, unless ring groove flanges are being used in which the Type D must be specified.
Consists of a Ring gasket (supplied with supporting bolts insulation materials)
Flange Insulation kits are available in different Types to suit flange configuration. There are kits are also available for Potable Water applications.
IG can also manufacture to specialty flange sizes and shapes.
Refer datasheet for further product information or contact our Technical Sales team.
