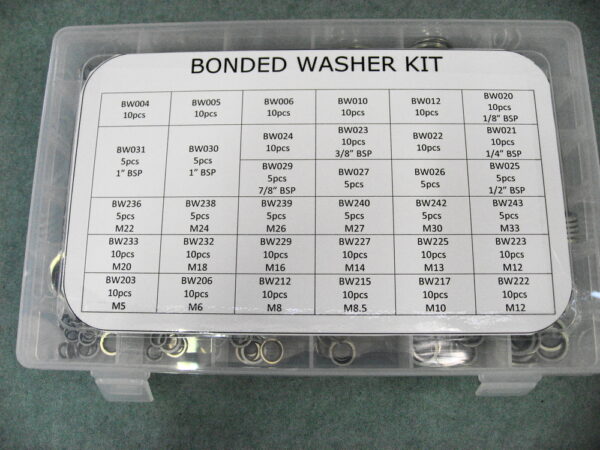

Industrial Gaskets supplies Bonded Washer Kits
A Bonded Washer is a metal washer bonded with rubber, bonded washers, aka Dowty washers are used to seal bolt heads and prevent leakage from hydraulic fittings, pipe joins and valve bodies. A bonded washer consists of a metal washer bonded to a rubber internal diameter that is wider than the washer. As the bolt is tightened, the rubber seal element is compressed until the bolt head contacts with the metal outer of the washer, creating an efficient high pressure seal.
| Size Reference | Thread | Qty |
|---|---|---|
| Total 280pcs | ||
| 004 | 10 | |
| 005 | 10 | |
| 006 | 10 | |
| 010 | 10 | |
| 012 | 10 | |
| 020 | 1/8″ BSP | 10 |
| 021 | 1/4″ BSP | 10 |
| 022 | 10 | |
| 023 | 3/8″ BSP | 10 |
| 024 | 10 | |
| 025 | 1/2″ BSP | 5 |
| 026 | 5 | |
| 027 | 5 | |
| 029 | 7/8″BSP | 5 |
| 030 | 1″ BSP | 5 |
| 031 | 1″ BSP | 5 |
| 203 | M5 | 10 |
| 206 | M6 | 10 |
| 212 | M8 | 10 |
| 215 | M8.5 | 10 |
| 217 | M10 | 10 |
| 222 | M12 | 10 |
| 223 | M12 | 10 |
| 225 | M13 | 10 |
| 227 | M14 | 10 |
| 229 | M16 | 10 |
| 232 | M18 | 10 |
| 233 | M20 | 10 |
| 236 | M22 | 5 |
| 238 | M24 | 5 |
| 239 | M26 | 5 |
| 240 | M27 | 5 |
| 242 | M30 | 5 |
| 243 | M33 | 5 |
