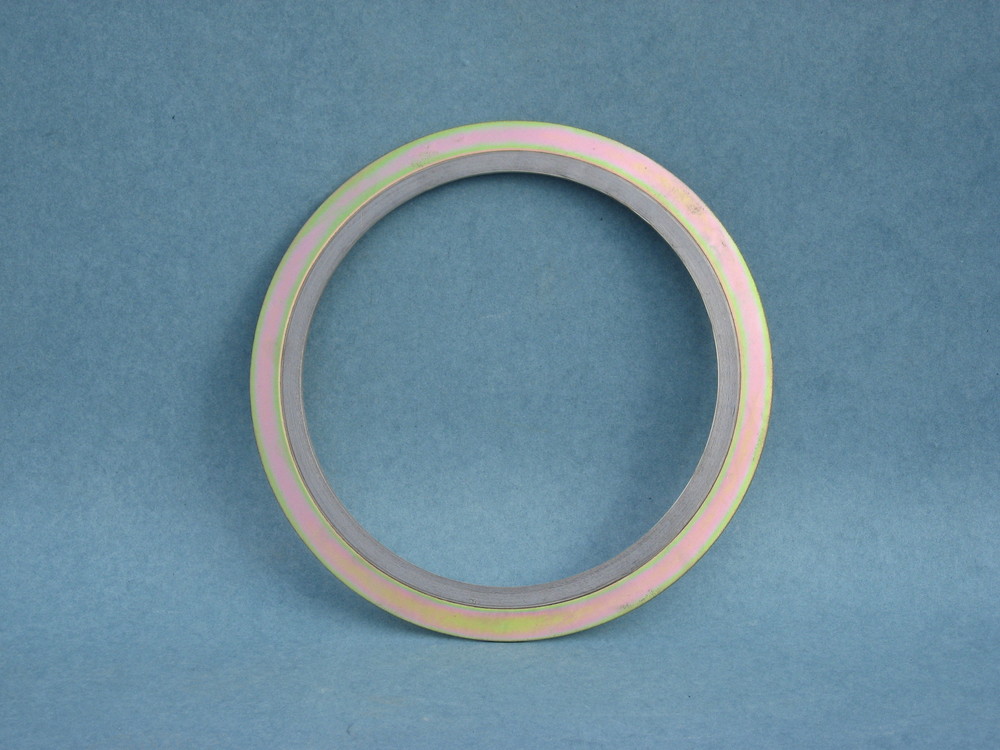

The Spiral Wound “SWG” Style CG consists of a centering ring with a windings (sealing element), typically a Carbon Steel outer ring with 316SSL Windings and a Graphite Filler.
An integral centering ring (Outer or Guide ring) assures fast, accurate centering of the gasket on the flange. It also acts as a compression limiter to prevent over compression of the winding (or sealing face) of the gasket.
Used mainly on Raised Face flanges the Spiral Wound Gasket – CG is suitable for General Duties.
Materials commonly used on Spiral Wound Gasket – CG are Mild or Carbon Steel, 316 Stainless Steel and 304 Stainless Steel.
Other materials include Titanium, Monel, Hastalloy, 321 and 320 Stainless Steel Nickel.
Stocks of Style CR are held from 15mm through to 750mm in standard flange sizes #150 (ANSI 150) to #900 (ANSI 900).
| SizeFlange Rating/Standard | Price | |
|---|---|---|
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 100mm | $7.88 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 125mm | $9.49 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 150mm | $12.50 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 15mm | $1.27 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 200mm | $16.24 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 20mm | $1.60 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 250mm | $21.11 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 25mm | $2.00 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 300mm | $28.67 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 32mm | $2.14 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 350mm | $31.40 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 400mm | $40.56 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 40mm | $2.81 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 450mm | $54.12 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 500mm | $65.21 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 50mm | $3.54 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 600mm | $82.25 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 65mm | $4.14 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #150 80mm | $5.55 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300 100mm | $8.09 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300 125mm | $9.69 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300 150mm | $13.30 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300 200mm | $18.44 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300 250mm | $22.92 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300 300mm | $29.80 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300 350mm | $33.81 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300 400mm | $42.46 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300 450mm | $57.73 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300 500mm | $68.56 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300/#600 15mm | $1.34 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300/#600 20mm | $1.67 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300/#600 25mm | $2.00 | |
SWG Carbon Steel Outer Ring, 316SS Windings, Graphite Filler 4.5mm thick – #300/#600 32mm | $2.27 |
