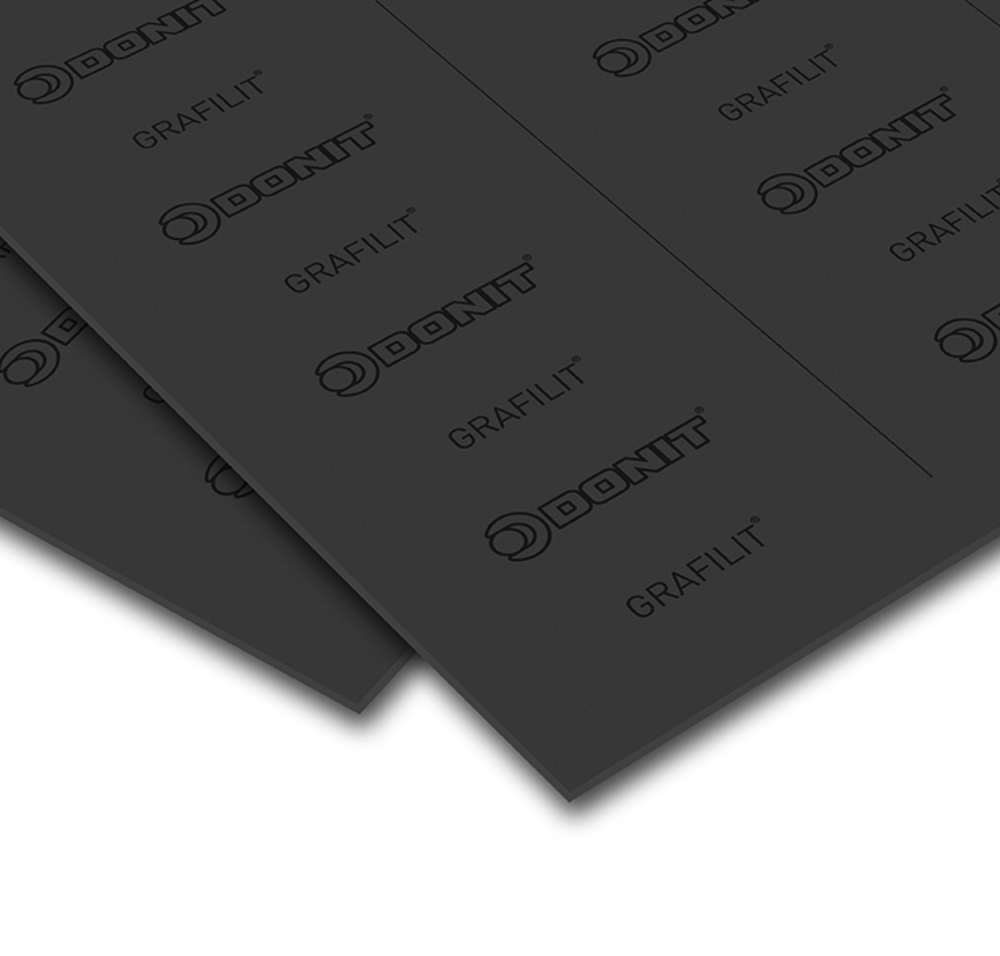

Donit Grafilit SL

Industrial Gaskets is an Authorised Distributor of Donit Grafilit SL.

Donit Grafilit SL is a gasket material which combines excellent properties of expanded graphite and the strength of 316 stainless steel foil insert. This type of material features very good strength, creep resistance, chemical stability and high tightness.

Donit Grafilit® SL is an expanded graphite based material with stainless steel foil insert, thus facilitating its handling and enhances the surface load. Donit Grafilit® SL has excellent chemical and thermal resistance.

Its high creep resistance and high compressibility make it suitable for highly demanding conditions in the chemical and petrochemical industries, including highly demoing conditions in the chemical and petrochemical industries.


High Temp Applications
General Purpose
Water Supply
Power Plant
Steam Supply
Gas Supply
Chemical Industry
Petrochemical Industry
Refrigeration and Cooling
Compressors and Pumps

Dimensions of standard sheet

Size (mm): 1000 x 1000 | 1500 x 1500
Thickness (mm): 1.0 | 1.5 | 2.0 | 3.0
Other dimensions and thicknesses are available on request.


  • DIN-DVGW DIN 3535-6
  • DVGW VP 401 (5bar)
  • API 607
  • BAM (Oxygen)
  • Germanischer Lloyd
